As-Built Drawings

Samples of projects to create accurate as-built floor plans of homes and apartments in Asbury Park and Ocean Township.

Our clients use these drawings to save time when planing renovations, because they can get a head start on design development before engaging the services of consultants.

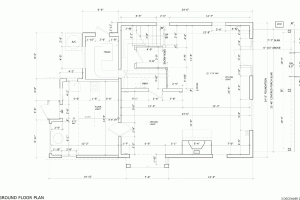

As-built floor plans for a lakefront house with, and without dimensions to design an addition in the back yard.

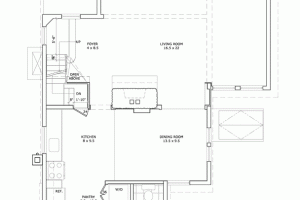

As-built drawing of a gambrel style house requested by the client as a starting point for proposed changes

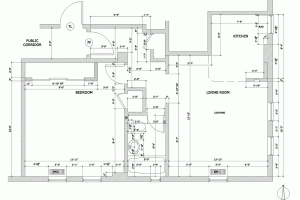

As-built drawings for Asbury Park commercial rental apartment
